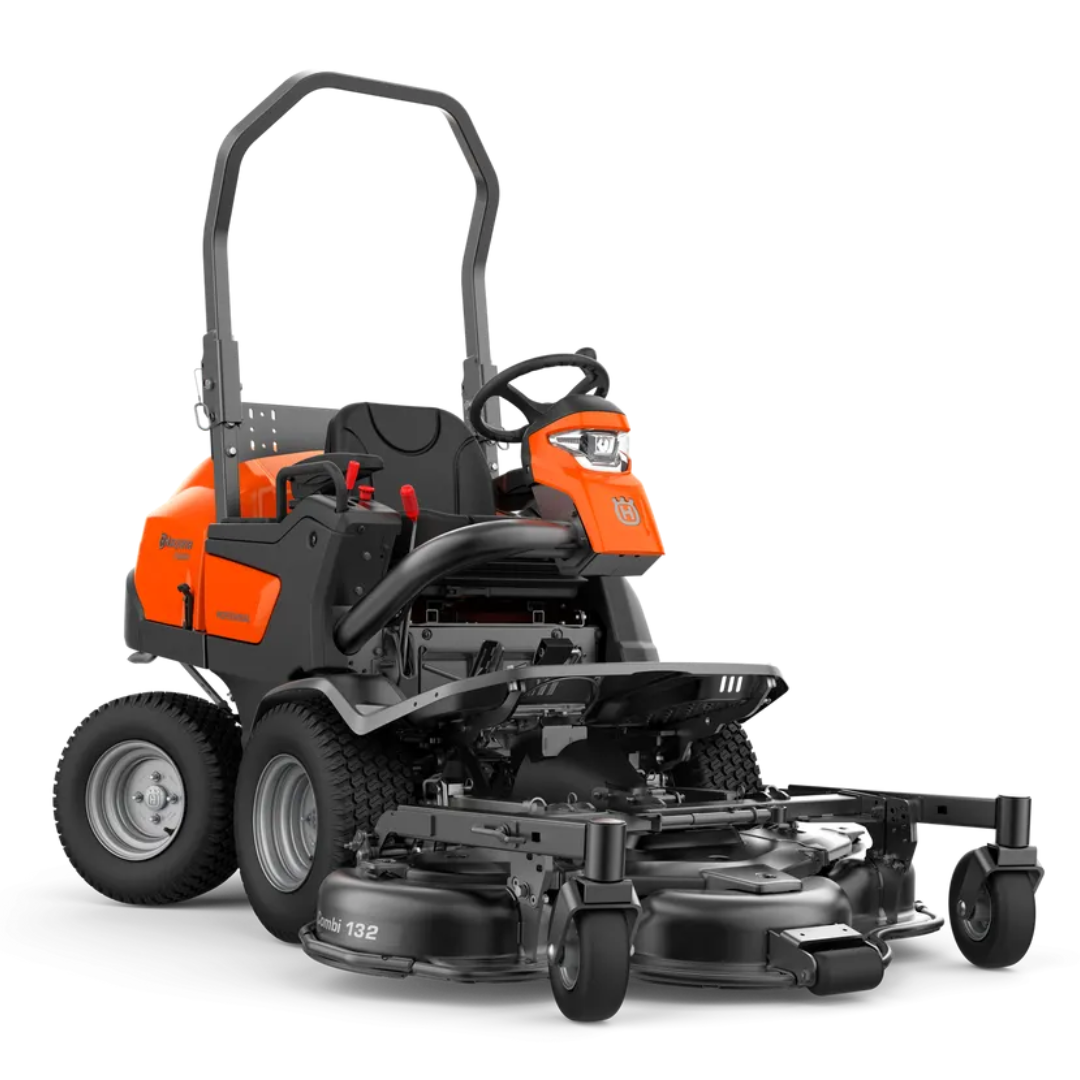

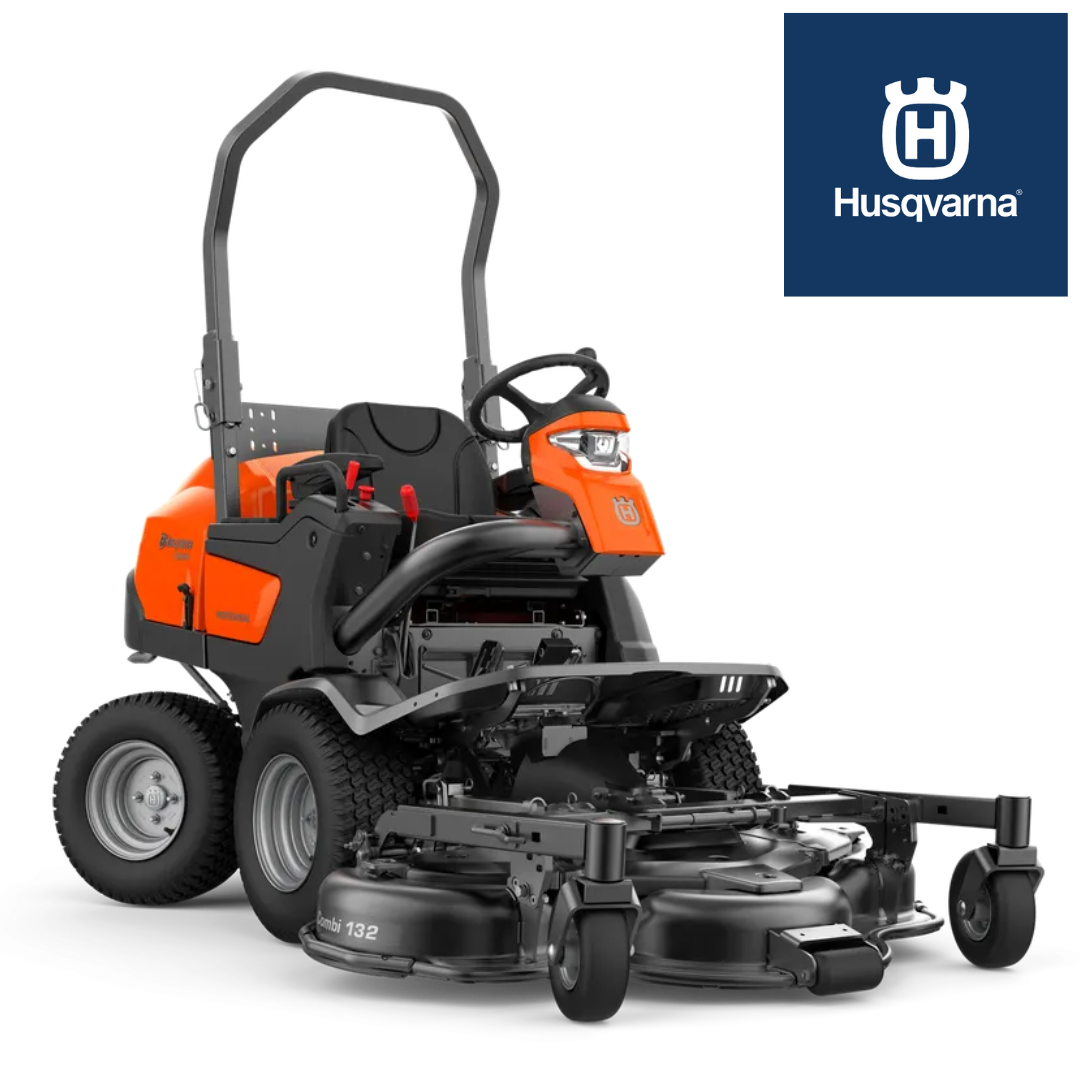

Husqvarna P 520DX Ride-On Mower
Husqvarna P 520DX Ride-On Mower
Couldn't load pickup availability
Husqvarna P 520X Ride-On Mower
- Optional mowing decks & attachments
- Off-set cutting deck
- Unique articulated steering
- All-Wheel Drive (AWD)
- Hydraulic power steering
- Kubota diesel engine
- PTO shaft
- Durable ladder frame
- Versatile usage
- Quick coupling
- Trimming ability
- Dual LED lights
- Electric engaged parking brake
- Roll Over Protective Structure (ROPS)
- Power outlet
- Commercial graded transmission
- Greasable mandrels
- AUX hydraulics kit
DESCRIPTION
The Husqvarna P 520DX is a diesel-powered front mower offering unbeatable manoeuvrability and productivity in complex and narrow environments as well as in larger-sized areas.
The commercial graded transmission gives uncompromised traction and slope stability.
The machine's compact size makes it suitable both for stationary and mobile application for municipalities, contractors, housing agencies etc. Thanks to the front-mounted cutting deck the operator has perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc.
Long-life components for solid durability and less downtime.
Attachments such as utility bucket, broom, folding plough and cabin give increased productivity all-year round. Husqvarna P 520DX is delivered deckless and can be fitted with 132 and 155 cm Combi cutting decks.
DELIVERY & LEASE OPTIONS
DELIVERY: We offer a free delivery service for all ride-on mowers within a 25 mile radius of our Burnley & Wakefield depots. For addresses beyond this, please contact us for a delivery quotation. All ride-on mowers are assembled, checked over by our Service Team and ready to get straight to work!
LEASE: All service, repair and insurance costs are covered with Husqvarna's Lease Plus package. Monthly installments over 36 or 60 months for hassle-free ownership!
SPECIFICATION
| Engine |
P 520DX
|
|---|---|
Power/fuel type |
Diesel |
Net power at preset rpm |
3,000 rpm |
Engine brand |
Kubota |
Motor/engine manufacturer |
Kubota |
Engine name |
D 902 |
Cylinder displacement |
898 cm³ |
Cylinders |
3 |
Engine cooling |
Liquid |
Engine lubrication type |
Full pressure |
Oil filter |
Yes |
| Battery | |
Battery capacity |
62 Ah |
Battery type |
Lead-Acid |
Battery pack weight |
14 kg |
Battery manufacturer |
Exide |
| Cutting deck | |
Uncut circle |
55 cm |
Cutting width, min |
132 cm |
Cutting width, max |
155 cm |
Cutting height min |
30 mm |
Cutting height max |
112 mm |
Blade engagement |
Electric clutch |
| Dimensions | |
Tyre dimensions, front |
20x8-10 |
Tyre dimensions, rear |
20x8-10 |
Wheelbase |
106 cm |
Ground clearance |
140 mm |
Base machine, length |
207.8 cm |
Base machine, width |
113.2 cm |
Base machine, height |
133 cm |
Weight (excl. cutting equipment) |
649 kg |
| Drive system | |
PTO (Power Take Off) |
Shaft drive |
Transmission type |
Hydrostatic |
Transmission manufacturer, rear |
Kanzaki |
Drive method |
Dual pedal-operation |
Speed forward max |
17.5 km/h |
Speed reverse max |
13.5 km/h |
Transmission manufacturer, front |
Kanzaki |
Transmission model, front |
KTM 23LA |
Transmission model, rear |
KTM 23SA |
| Equipment | |
Seat suspension |
Yes |
Seat type |
Full suspension, arm rests |
Hour meter type |
Digital |
Seat material |
Vinyl |
Seat back height |
High |
Foldable seat |
Yes |
Steering wheel type |
Professional |
Parking brake, type |
Disc |
| Vibration | |
Vibration level steering wheel |
1.26 m/s² |
Vibration level seat |
0.32 m/s² |
| Sound and noise | |
Sound pressure level at operators ear |
88 dB(A) |
Sound power level, guaranteed (LWA) |
105 dB(A) |
Sound power level, measured |
104 dB(A) |
