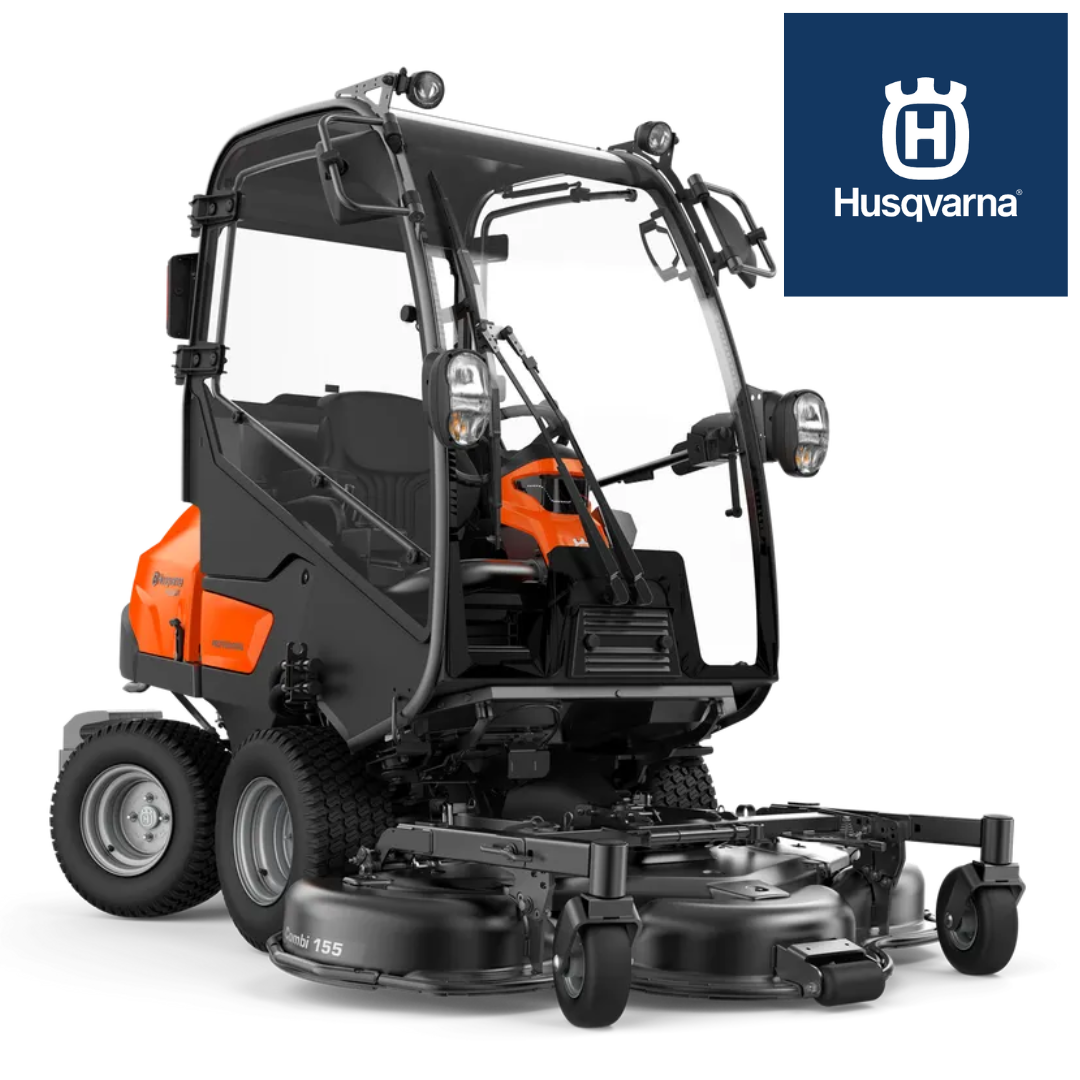

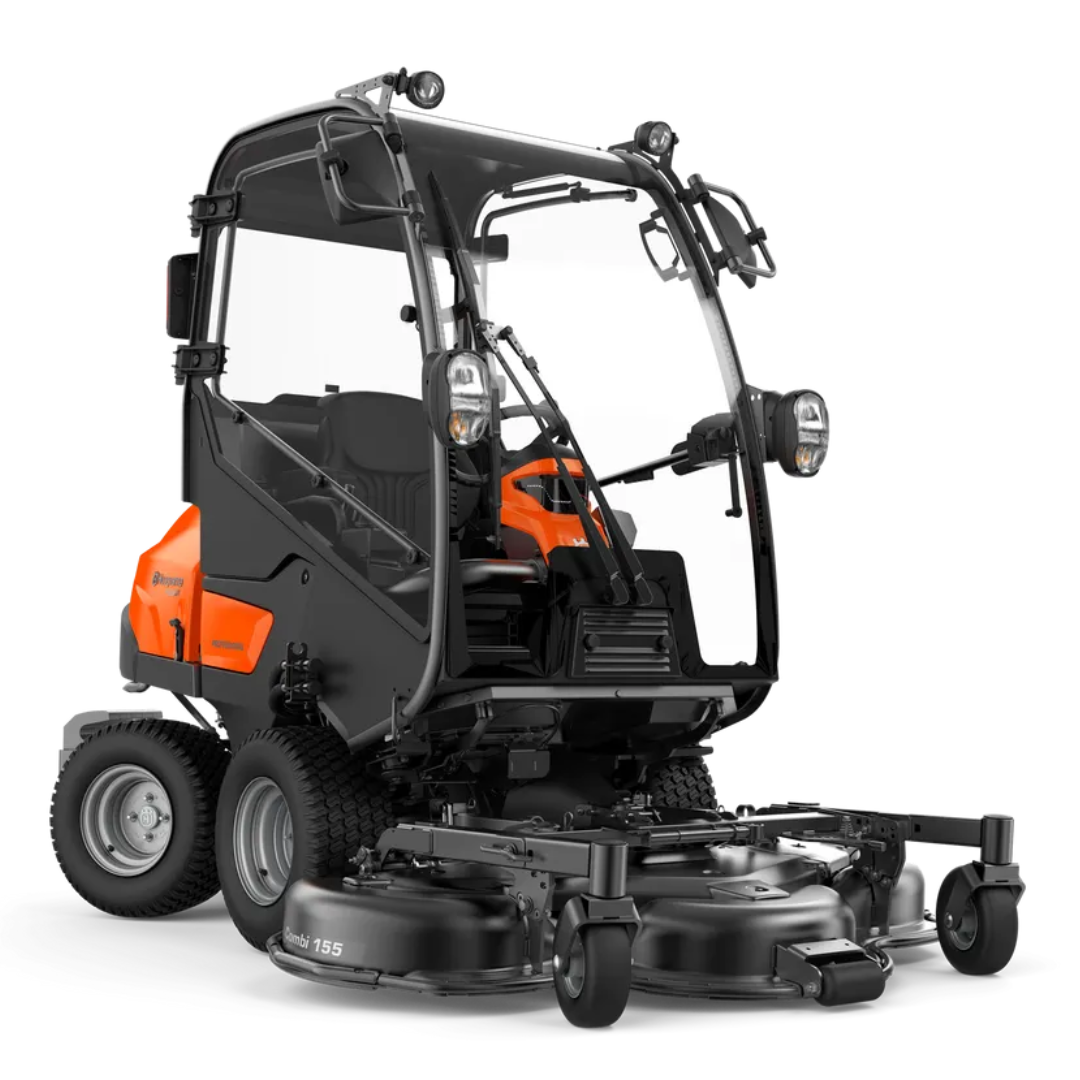

Husqvarna P 525DX Ride-On Mower with Cab

Husqvarna P 525DX Ride-On Mower with Cab

Regular price $28,899.00 USD
Regular price $33,999.00 USD Sale price $28,899.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Husqvarna P 525DX Ride-On Mower with Cab

  • Optional mowing decks & attachments
  • Off-set cutting deck
  • Unique articulated steering
  • All-Wheel Drive (AWD)
  • Hydraulic power steering
  • Kubota diesel engine
  • PTO shaft
  • Durable ladder frame
  • Versatile usage
  • Quick coupling
  • Trimming ability
  • Dual LED lights
  • Integrated warning lights
  • Electric engaged parking brake
  • Roll Over Protective Structure (ROPS)
  • Power outlet
  • Commercial graded transmission
  • Greasable mandrels
  • AUX hydraulics kit
DESCRIPTION

A high-capacity diesel-powered front mower with factory assembled cabin, offering unbeatable manoeuvrability and productivity in complex and narrow environments as well as in larger-sized areas all year round.

The commercial graded transmission gives uncompromised traction and slope stability. The machine's compact size and high transport speed make it suitable both for stationary and mobile applications for municipalities, contractors, housing agencies etc.

Thanks to the front-mounted cutting deck the operator has a perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc. Long-life components for solid durability and less downtime.

Attachments such as a utility bucket, broom, folding plough and cabin give increased productivity all year round. Husqvarna P 525D is delivered deckless and can be fitted with 132 and 155 cm Combi cutting decks.

The cabin is anti vibrated from the chassis, resulting in significantly lowered vibration and noise. The spacious cabin offers doors of glass, a front window up on the roof and a high specified Grammer seat, altogether increasing driver's comfort all year round. Fully equipped with a hydraulic kit, LED work lights, road lights, counterweight, heater, beacon light etc.

The cabin is easily removed from the chassis, in case the cabin is not needed during summertime.

ROPS structure is integrated into the cabin.

DELIVERY & LEASE OPTIONS

DELIVERY: We offer a free delivery service for all ride-on mowers within a 25 mile radius of our Burnley & Wakefield depots. For addresses beyond this, please contact us for a delivery quotation. All ride-on mowers are assembled, checked over by our Service Team and ready to get straight to work!

LEASE: All service, repair and insurance costs are covered with Husqvarna's Lease Plus package. Monthly installments over 36 or 60 months for hassle-free ownership!

SPECIFICATION
Engine
P 525DX CABIN

Power/fuel type

Diesel

Net power at preset rpm

3,000 rpm

Engine brand

Kubota

Motor/engine manufacturer

Kubota

Engine name

D1105

Cylinder displacement

1,123 cm³

Cylinders

3

Engine cooling

Liquid

Engine lubrication type

Pressure with Oil filter

Oil filter

Yes
Battery

Battery capacity

62 Ah

Battery type

Lead-Acid

Battery pack weight

14 kg

Battery manufacturer

Exide
Cutting deck

Uncut circle

58 cm

Cutting width, min

132 cm

Cutting width, max

155 cm

Cutting height min

30 mm

Cutting height max

112 mm

Blade engagement

Electric clutch
Dimensions

Tyre dimensions, front

20x10-10

Tyre dimensions, rear

20x10-10

Wheelbase

106 cm

Ground clearance

140 mm

Base machine, length

226.9 cm

Base machine, width

115.3 cm

Base machine, height

200.8 cm

Weight (excl. cutting equipment)

918 kg
Drive system

PTO (Power Take Off)

Shaft drive

Transmission type

Hydrostatic

Transmission manufacturer, rear

Kanzaki

Drive method

Dual pedal-operation

Speed forward max

19 km/h

Speed reverse max

15 km/h

Transmission manufacturer, front

Kanzaki

Transmission model, front

KTM 23LC

Transmission model, rear

KTM 23SC
Equipment

Seat suspension

Yes

Seat type

Full suspension, arm rests

Hour meter type

Digital

Seat material

Vinyl

Seat back height

High

Foldable seat

Yes

Steering wheel type

Professional

Parking brake, type

Disc
Vibration

Vibration level steering wheel

1.7 m/s²

Vibration level seat

0.7 m/s²
Sound and noise

Sound pressure level at operators ear

91 dB(A)

Sound power level, guaranteed (LWA)

105 dB(A)

Sound power level, measured

104 dB(A)
