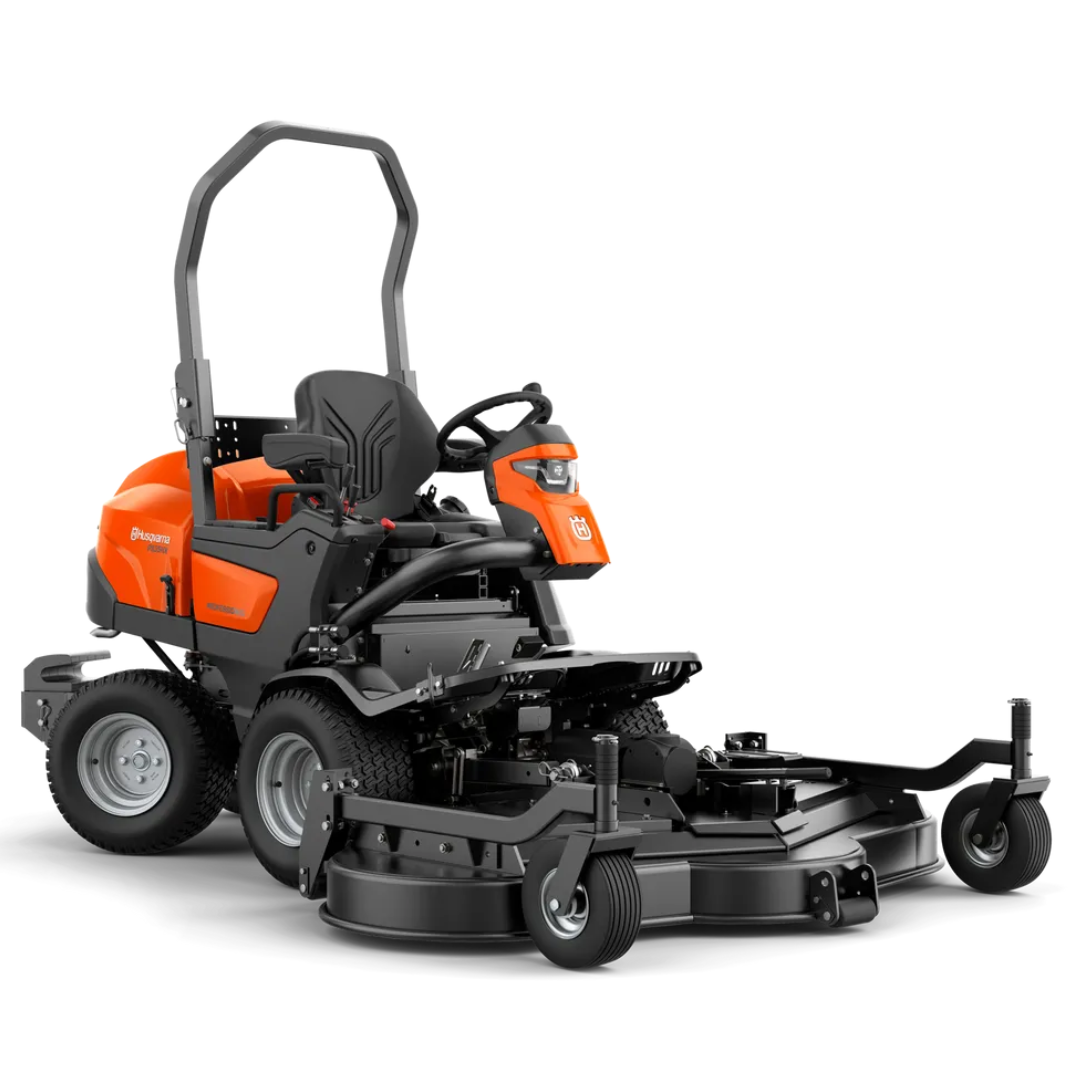

Husqvarna P 535HX Hy-Brid Ride-On Mower

Husqvarna P 535HX Hy-Brid Ride-On Mower

Regular price $32,299.00 USD
Regular price $37,999.00 USD Sale price $32,299.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Husqvarna P 535HX Hy-Brid Ride-On Mower

  • Optional mowing decks & attachments
  • Hybrid drive system
  • Unique articulated steering
  • All-Wheel-Drive (AWD)
  • Electronic traction control
  • Hydraulic power steering
  • Dynamic touch color display
  • PTO shaft
  • Kubota diesel engine
  • Commercial graded transmission+
  • Reduced fuel consumption
  • Electric fuel gauge
  • Grammer® full suspension seat
  • Tool carrier in electric mode
  • Quick coupling
  • Durable ladder frame
  • HVO100 ready
  • Dual LED lights
  • Hydraulic attachment control+
  • AUX hydraulics kit
  • Trimming ability
  • Off-set cutting deck
  • Greasable mandrels
DESCRIPTION

The Husqvarna P 535HX Hybrid Front Mower is ideal for keeping larger lawns and outdoor green spaces looking pristine, whilst working efficiently to save operators valuable time.

The ergonomic driver interface with modern graphic displays and easy-access controls provides a comfortable ride during long working hours and a built-in connectivity module allows you to connect with Husqvarna Fleet Services™.

The Husqvarna P 535HX can be equipped with high-capacity cutting decks up to 180 cm, providing an excellent result and efficient mowing in any terrain. Thanks to the 20" wheels, all-wheel drive and articulated steering it is easy to manoeuvre even in rough terrain and complex areas. Two electric motors power the wheel drive axles, while the PTO, hydraulics and electric generator are powered by a diesel engine.

Commercial-grade components and ease of service make for uncompromised durability and maximum uptime.

The incorporation of dual-energy sources combined with high efficiency in the Hybrid system enables extreme power for the P 535HX yet maintained in a compact and agile format.

The power train reduces the vehicle’s overall fuel consumption and its CO2 footprint and operational cost.

DELIVERY & LEASE OPTIONS

DELIVERY: We offer a free delivery service for all ride-on mowers within a 25 mile radius of our Burnley & Wakefield depots. For addresses beyond this, please contact us for a delivery quotation. All ride-on mowers are assembled, checked over by our Service Team and ready to get straight to work!

LEASE: All service, repair and insurance costs are covered with Husqvarna's Lease Plus package. Monthly installments over 36 or 60 months for hassle-free ownership!

SPECIFICATION
Engine
P 535HX

Power/fuel type

Hybrid Li-ion Battery/Diesel

Net power at preset rpm

3,000 rpm

Engine brand

Kubota

Motor/engine manufacturer

Kubota

Engine name

D1105

Cylinder displacement

1,123 cm³

Cylinders

3

Engine cooling

Liquid

Engine lubrication type

Pressure with Oil filter

Oil filter

Yes
Battery

Battery capacity

40 Ah

Battery type

Lithium Ion

Battery pack weight

17 kg

Battery manufacturer

Husqvarna
Cutting deck

Uncut circle

58 cm

Cutting width, min

132 cm

Cutting width, max

180 cm

Cutting height min

30 mm

Cutting height max

112 mm

Blade engagement

Electric clutch
Dimensions

Tyre dimensions, front

20x10.00-10

Tyre dimensions, rear

20x10.00-10

Wheelbase

106 cm

Ground clearance

134 mm

Base machine, length

209 cm

Base machine, width

116 cm

Base machine, height

134 cm

Weight (excl. cutting equipment)

790 kg
Drive system

Transmission type

Electric

Transmission manufacturer, rear

Benevelli

Drive method

Dual pedal-operation

Speed forward max

19.5 km/h

Speed reverse max

11 km/h

Transmission manufacturer, front

Benevelli

Transmission model, front

TX2

Transmission model, rear

TX2
Equipment

Seat suspension

Yes

Seat type

Full suspension, arm rests

Hour meter type

Digital with pre-programmed service intervals

Seat material

Vinyl

Seat back height

High

Foldable seat

Yes

Steering wheel type

Professional

Parking brake, type

Drum
Vibration

Vibration level steering wheel

1.2 m/s²

Vibration level seat

0.1 m/s²
Sound and noise

Sound pressure level at operators ear

88 dB(A)

Sound power level, guaranteed (LWA)

105 dB(A)

Sound power level, measured

104 dB(A)
